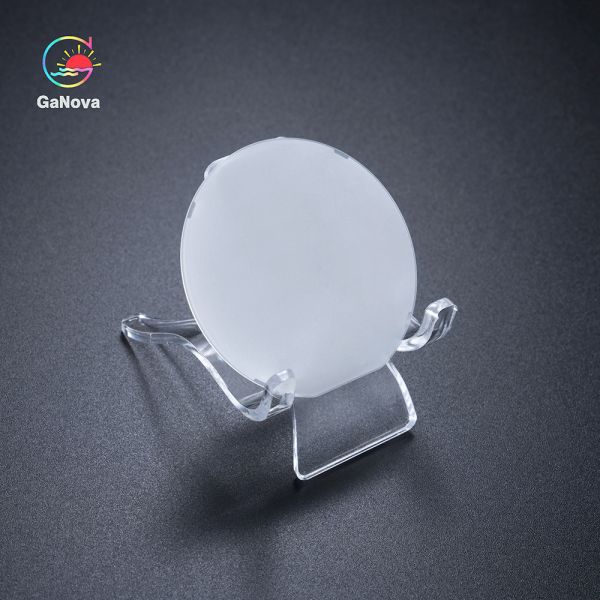

JDCD08-001-006 6inch C-Plane Sapphire Substrate Wafer
Sapphires are Second Only to Diamonds in Durability
Diamond is the most durable naturally occurring element on earth and ranks as a 10 out of 10 on Mohs Scale of Mineral Hardness. Sapphires are also very durable and rank as a 9 out of 10 on Mohs Scale.
Nearly all sapphires and sapphire jewelry from online sources and in traditional retail stores are described as “natural”.
| 6inch C-plane High Purity Al2O3 substrates |
|
Parameters
|
Specification |
| Unit |
Target |
Tolerance |
| Material |
High purity Al2O3(＞99.995%) |
| Diameter |
mm |
150.00 |
±0.1 |
| Thickness |
μm |
1000
|
±15 |
| Surface Orientation |
C-Plane(0001) |
| -Off Angle toward M-axis |
degree |
0.20 |
±0.1 |
| -Off Angle toward A-axis |
degree |
0.00 |
±0.10 |
| Flat Orientation |
A-Plane(11-20) |
| -Flat Off-set Angle |
degree |
0.0 |
±0.2 |
| Flat Lenght |
mm |
47.5 |
±1 |
| Front surface Roughness(Ra) |
nm |
≤0.2 |
| Back surface Roughness |
μm |
0.8~1.2μm |
| Front surface Quality |
Mirror Polished,EPI-Ready |
| Wafer edge |
T-type or R-type |
| R-plane |
R9 |
| TTV |
μm |
≤10 |
| LTV(5x5mm) |
μm |
≤2(75%＜1.8μm) |
| Bow |
μm |
-0.5~-20 |
| Warp |
μm |
≤25 |
| Laser mark |
|
As customer required |
About Us
We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.
FAQ
Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
