JDCD08-001-007 6inch C-Plane Sapphire Substrate Wafer
Ruby and sapphires are both made of corundum (aluminium oxide - Al2O3). Corundum is one of the hardest known natural substance after diamond. In addition, because corundum is so hard and resistant to weathering, it can also be found in sedimentary deposits and sedimentary rocks.
Sapphire ranks 9 on the Mohs hardness scale. Corundum is stable under normal wearing conditions, which means it's resistant to the effects of heat, light, and common chemicals.
| 8inch C-plane High Purity Al2O3 substrates |
|
Parameters
|
Specification |
| Unit |
Target |
Tolerance |
| Material |
High purity Al2O3(＞99.995%) |
| Diameter |
mm |
200.00 |
±0.1 |
| Thickness |
μm |
customize |
±25 |
| Surface Orientation |
C-Plane(0001) |
| -Off Angle toward M-axis |
degree |
0.00 |
±0.1 |
| -Off Angle toward A-axis |
degree |
0.00 |
±0.1 |
| Notch |
A-Plane(11-20) |
| Notch |
degree |
0.0 |
±0.3° |
| Notch |
mm |
1.0 |
±0.1 |
| Notch |
degree |
92° |
±2° |
| Notch R |
nm |
1.0 |
±0.2 |
| R-plane |
R9 |
| TTV |
μm |
≤15 |
| Bow |
μm |
≤30 |
| Warp |
μm |
≤45 |
| Ra |
nm |
First Ra≤0.3nm；Back Ra；0.8-1.2μm |
| Laser mark |
|
As customer required |
About Us
We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.
FAQ
Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
Product Tags:
|
|

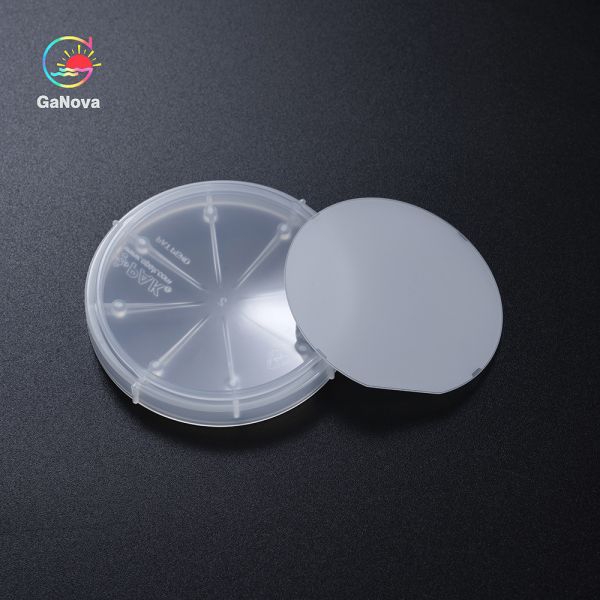

JDCD08-001-007 8inch C-Plane Sapphire Substrate Wafer Images
|
